Product Overview
Purification Panels, also known as cleanroom panels, are specially engineered wall and ceiling systems designed for controlled environments requiring strict cleanliness, dust-free conditions, and easy sanitation.
The panel consists of a flat, non-porous surface layer (pre-painted steel, stainless steel, or anti-bacterial coated steel) bonded to a core material such as rock wool, EPS, PU foam, or aluminum honeycomb. The seamless, flush design eliminates dust-trapping gaps and allows for quick wipe-down cleaning.
These panels are the standard choice for pharmaceutical factories, electronics cleanrooms, food processing plants, hospitals, and laboratories.

Key Advantages
Cleanroom-Grade Surface
Perfectly flat, smooth, and non-porous surface prevents particle accumulation. No grooves or uneven joints where dust or bacteria can hide.
Easy to Clean & Sanitize
Seamless construction allows for quick wiping, spraying, or mopping with disinfectants and cleaning agents. Resists chemical corrosion from common cleaners.
Leak-Free Sealing System
Special aluminum extruded profiles with rubber gaskets and sealants create airtight and watertight joints, preventing cross-contamination between rooms.
Excellent Flatness
High-precision manufacturing ensures panel surfaces are extremely flat, meeting strict cleanroom classification requirements (Class 100 to Class 100,000).
Customizable Core Material
Choose the core based on your specific needs — fire resistance, thermal insulation, structural strength, or lightweight partitioning.
Modular & Reusable
All panels are prefabricated with factory-installed connectors. Easy to assemble, disassemble, and reconfigure as production lines change.
Anti-Static Option
Special anti-static surface coating available for electronics and semiconductor cleanrooms to prevent electrostatic discharge (ESD) damage.

Technical Specifications
Effective Width: 950mm, 1150mm, 1180mm (custom widths available)
Panel Thickness: 50mm, 75mm, 100mm (custom thickness up to 150mm)
Steel Thickness: 0.4mm – 0.6mm (pre-painted galvanized / stainless steel / anti-bacterial coated)
Length: Customized per order (typically ≤12m, with splicing for longer walls)
Surface Color: White is standard (RAL 9002 / 9003). Custom colors available upon request.
Corner Connection: Cam-lock or hook-and-groove system with aluminum profiles
Sealing: Rubber gaskets + neutral silicone sealant at all joints

Core Material Options

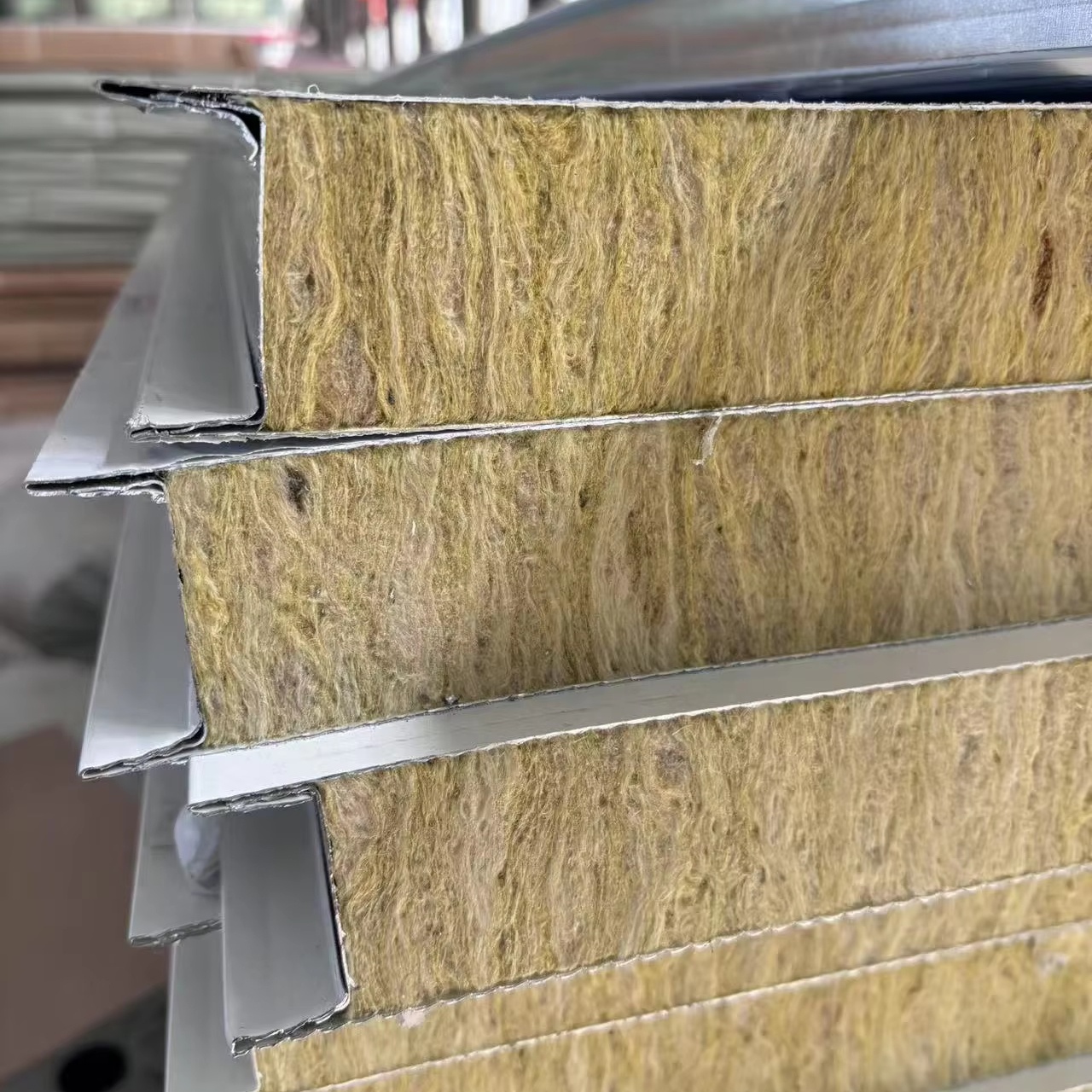

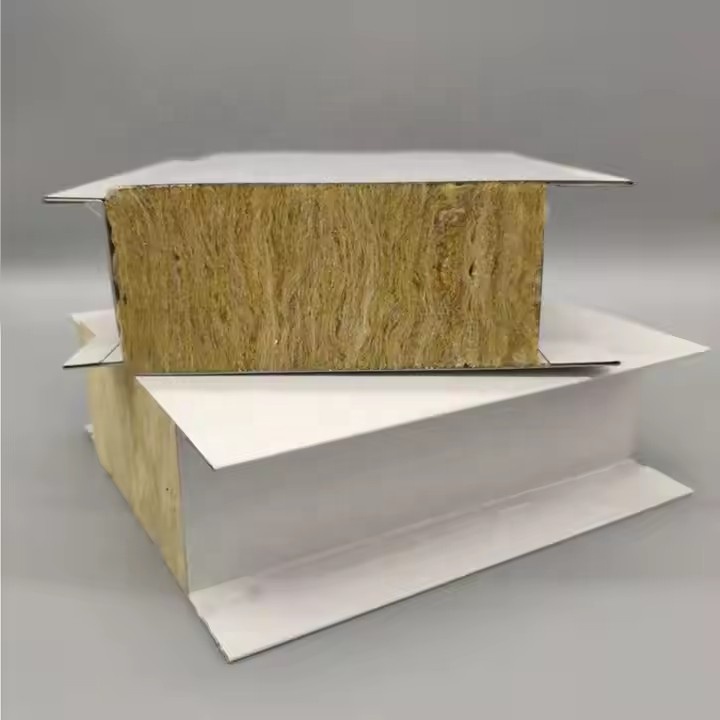

Rock Wool Core
Class A non-combustible fire rating. Excellent sound absorption and thermal insulation. Best for fire-rated cleanroom walls and partitions.
PU (Polyurethane) Core
Class B fire rating with excellent thermal insulation. Lightweight and high structural strength. Best for temperature-controlled cleanrooms such as cold storage or constant-temperature rooms.
EPS Core
Economical option with Class B fire rating. Lightweight and easy to install. Best for general cleanrooms with lower fire safety requirements.
Aluminum Honeycomb Core
Ultra-lightweight with extremely high rigidity and flatness. Completely non-combustible. Best for ceilings, sliding doors, and applications requiring minimal load on structures.
Paper Honeycomb Core
Very lightweight and low cost. Suitable for temporary cleanrooms or interior partitions with no fire rating requirement.

Aluminum Profile Connection System
Purification panels are joined using a complete aluminum extrusion system designed specifically for cleanroom construction:
Ceiling connection: T-grid or concealed suspension system
Wall-to-wall connection: Vertical cam-lock profiles with rubber sealing
Wall-to-floor connection: Curved cove profiles (no sharp corners for easy cleaning)
Wall-to-ceiling connection: Right-angle profiles with sealant
Door & window frames: Pre-assembled aluminum frames with gaskets
All profiles are made of anodized or powder-coated aluminum for corrosion resistance.

Main Applications
Pharmaceutical Industry
Tablet manufacturing, injection filling, sterile packaging, API production. Requires Class 100 to Class 10,000 cleanrooms.
Electronics & Semiconductor
Microchip fabrication, PCB assembly, LCD panel production, battery manufacturing. Requires anti-static panels and Class 1000 or higher.
Food & Beverage
Dairy processing, meat cutting, bakery production, beverage filling. Requires easy-clean surfaces and temperature control.
Medical & Healthcare
Operating rooms (OR), intensive care units (ICU), isolation wards, hospital pharmacies. Requires seamless, antibacterial surfaces.
Laboratory
Research labs, testing centers, quality control rooms, animal labs. Requires chemical resistance and easy decontamination.
Precision Manufacturing
Aerospace components, optical lens production, medical device assembly. Requires particle-free environments.
